Diamondback Division 2 Bike
Embrace the city streets with the City Bike known as the Diamondback Division 2 27.5" bike! Whether you're commuting, meeting friends for a drink, or cruising home after a show, the Division 2 is equipped to conquer the challenges of urban riding. In the city, every surface is unpredictable, presenting a variety of obstacles such as potholes, manhole covers, train tracks, curbs, grates, and more. Fear not, as the Division 2 is specifically designed to handle it all.
Combining the agility of a mountain bike with the practicality of a street bike, this popular model is the ultimate multiuse machine. It comes with reflective decals and rack and fender mounts, ensuring readiness for any situation you encounter. Crafted from lightweight aluminum, both the frame and fork strike the perfect balance between portability and durability. Whether you need to navigate steep stairs to an apartment or withstand the rigors of intense city riding, the Division 2 is up to the task.
Equipped with 9 speeds, a wider handlebar diameter, and hydraulic disc brakes, this bike offers optimal stopping power and smooth gear shifting. It's designed to be low-maintenance while providing superior braking performance even in wet and dirty conditions. Thanks to its large all-terrain tires, the Division 2 effortlessly rolls over almost anything in its path. Take your mountain biking skills to the streets and experience the versatility of this all-in-one ride, perfectly suited for the urban landscape.
SIZING
SIZE | SM/15 5'4" - 5'7" | MD/17 5'7"- 5'10" | LG/19 5'10" - 6'1" |
XL/21 6'1" - 6'4" |
---|
Components and Specifications:
COMPONENT | SPECIFICATION |
---|---|
FRAME | Custom Formed AL-6061 Heat Treated Aluminum 27.5 City Sport Geometry |
FORK | Aluminum Blades, with Post Mount Disc |
HEADSET | 1 1/8" Internal Cartridge Bearing |
CRANKS | Aluminum Forged 3PC 104 BCD, 40t |
BOTTOM BRACKET | Sealed Cartridge Bearing |
FRONT DERAILLEUR | N/A |
REAR DERAILLEUR | Shimano Alivio M3100-SGS Shadow |
SHIFTER | Shimano Acera M3100 9-Speed Trigger Shifter, Right Side Only |
COGSET | Shimano 9 Speed 11-34t Cassette |
CHAIN | KMC 9sp |
FRONT HUB | Aluminum Quick Release Disc, 32 Hole |
REAR HUB | Aluminum Quick Release Disc, 32 Hole |
SPOKES | 14g Stainless Steel with Brass Nipples |
RIMS | Aluminum DDM-5, 32h, 27.5", 28mm Wide Double Wall |
TIRES | Vee Tire Co. Zilent 650x47c, Wire Bead, 30 TPI |

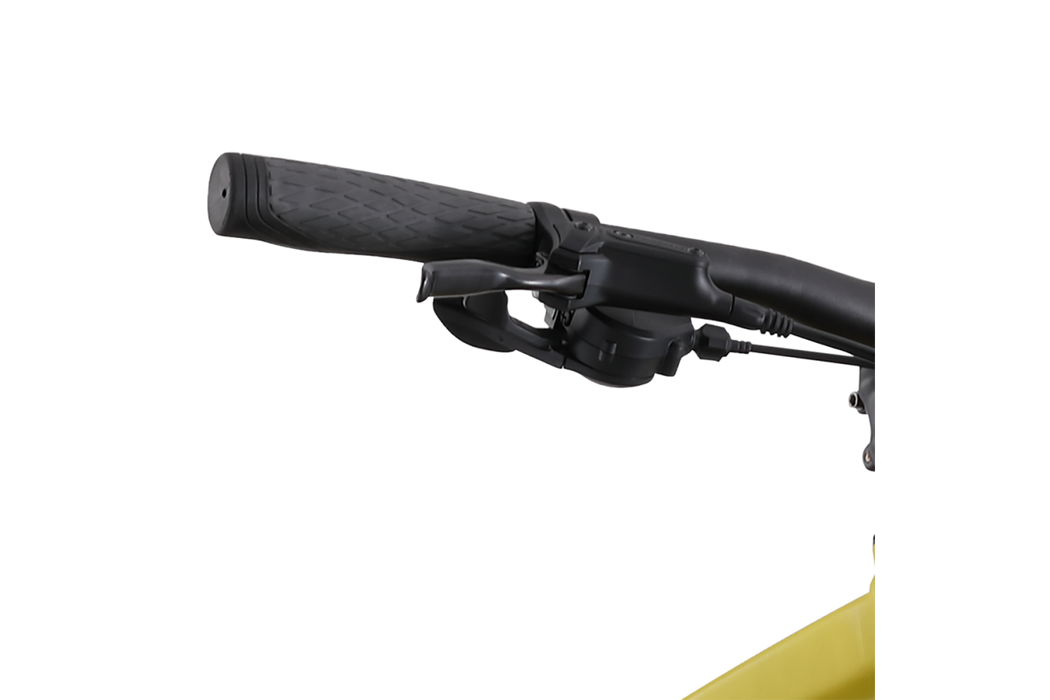

BRAKE LEVERS | Tektro HD-T275 |
PEDALS | Aluminum Body, Chromoly Spindle |
HANDLEBAR | Aluminum 31.8, 15mm Rise, 680mm Wide |
GRIPS | ERGO Dual Density |
STEM | 3D Forged Aluminum Alloy 35mm Bar Clamp |
SEAT | Urban Warrior Saddle |
SEATPOST | Aluminum Micro Adjust, 27.2 x 350/400mm |
EXTRAS | Reflective Decals, Rack and Fender Mounts |
BRAKES | Tektro HD-T275 Hydraulic Disc with 160mm Rotors |
Geometry:
FRAME SIZE | SM/15 5'4" - 5'7" | MD/17 5'7"- 5'10" | LG/19 5'10" - 6'1" | XL/21 6'1" - 6'4" |
---|---|---|---|---|
Rider Height | - | - | - | - |
Bike Stand Over Height | 694.0 mm | 737.0 mm | 778.0 mm | 818.0 mm |
Bike Seat Tube Length | 380.0 mm | 430.0 mm | 480.0 mm | 530.0 mm |
Bike Top Tube Length | 565.0 mm | 595.0 mm | 610.0 mm | 625.0 mm |
Bike Head Tube Length | 120.0 mm | 145.0 mm | 170.0 mm | 195.0 mm |
Bike Head Angle | 70.0 ° | 70.0 ° | 70.0 ° | 70.0 ° |
Bike Seat Angle | 73.0 ° | 73.0 ° | 73.0 ° | 73.0 ° |
Bike Wheel Base | 1043.0 mm | 1074.0 mm | 1090.0 mm | 1107.0 mm |
Bike Chain Stay Length | 425.0 mm | 425.0 mm | 425.0 mm | 425.0 mm |
Bike Fork Offset | 48.0 mm | 48.0 mm | 48.0 mm | 48.0 mm |
Bike Bb Height | 282.0 mm | 282.0 mm | 282.0 mm | 282.0 mm |
Bike Bb Drop | 67.5 mm | 67.5 mm | 67.5 mm | 67.5 mm |
Bike Stem Length | 70.0 mm | 70.0 mm | 80.0 mm | 80.0 mm |
Bike Handlebar Width | 680.0 mm | 680.0 mm | 700.0 mm | 700.0 mm |
Bike Crank Length | 170.0 mm | 175.0 mm | 175.0 mm | 175.0 mm |
Bike Seat Post Length | 350.0 mm | 350.0 mm | 350.0 mm | 350.0 mm |
Bike Stack | 550.0 mm | 573.0 mm | 597.0 mm | 620.0 mm |
Bike Reach | 396.0 mm | 419.0 mm | 427.0 mm | 435.0 mm |
Bike Fork Length | 410.0 mm | 410.0 mm | 410.0 mm | 410.0 mm |
Unable to use safely
Front break assembly was broken out of the box. Still working on warranty process. Fingers crossed but I’m not feeling good about it so far.
Bike review
Great bike . I need to get it finely tuned
