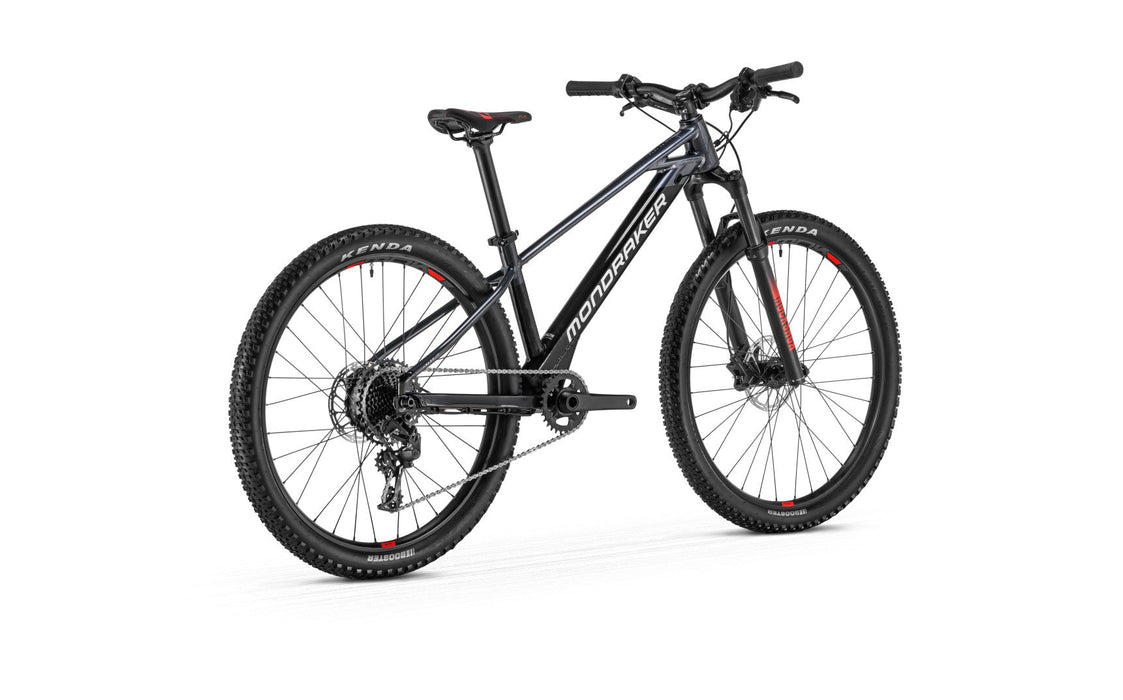

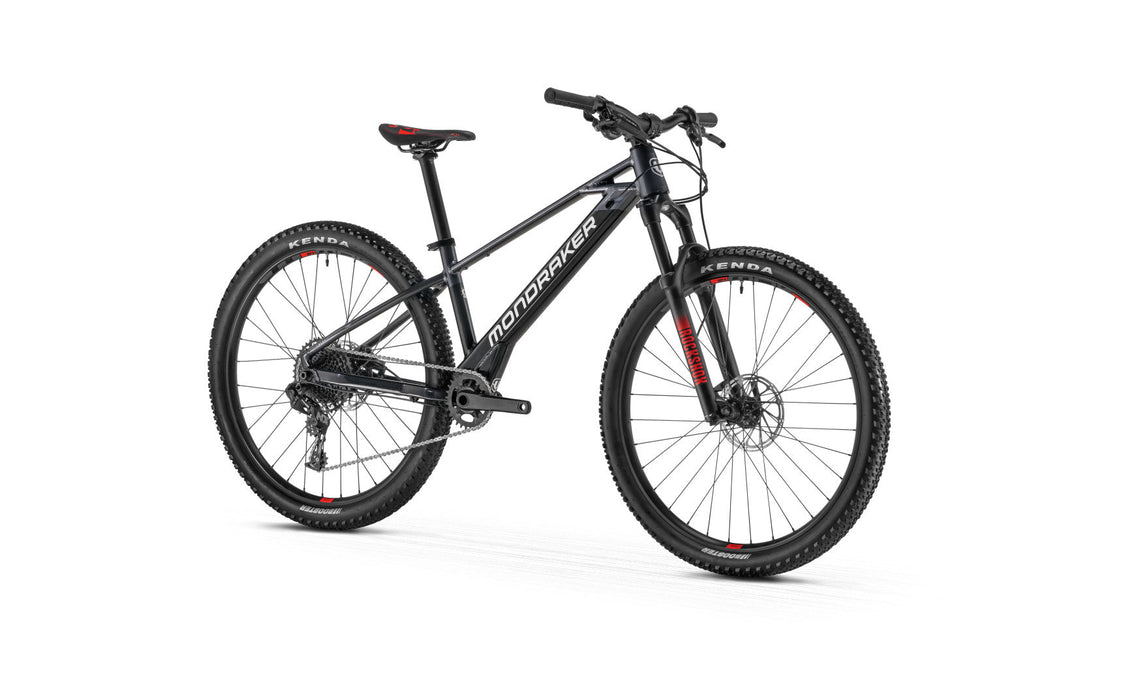

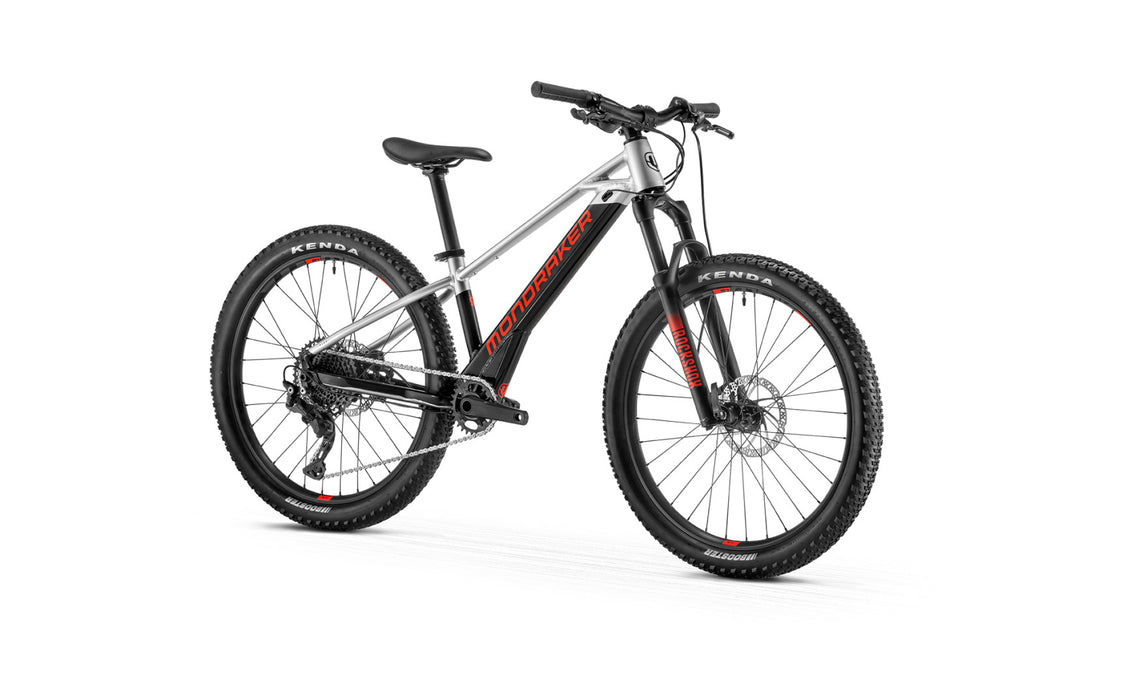

Mondraker Play 24 Electric Kids Bike
Designed for little big riders, the Play 24 has the aesthetics and top of the line features of Mondraker's adult bikes adapted to 24" wheels.
Its frame is made of lightweight hydroformed 6061 STEALTH EVO aluminum which gives the bike its own personality. If we add into the mix a Mahle motor with a 250Wh battery together giving you range to spare, you’re looking at an ebike prepared to go anywhere. As if that weren’t enough it also comes with a RockShox Judy Silver fork with 100mm of travel, SRAM Level hydraulic disc brakes, and 2.4" wide tires to improve comfort and grip.
-
Fully integrated hardtail eMTB for kids.
-
Mahle e-Bikemotion X35 hub motor provides the right performance.
-
Maintenance free, compact design.
-
Long lasting 250Wh range for a kid’s bike
Young bikers can now experience the thrills of mountain biking with PLAY 24 Hardtail! This kids’ sports E-bike is packed with mountain bike features tailored towards children who want to get started on trail-shredding rides.
Unleash the power of the Mahle-Ebikemotion X-35 motor, backed by an integrated Mahle-Ebikemotion Internal 250Wh battery, both seamlessly concealed inside a durable stealth alloy frame to handle the rigors of mountain bike riding.
Young racers will love the safety and confidence offered by Mondraker’s modern geometry that helps with improved handling, overall control, uphill precision, and stability in tough terrains.
The durable stealth alloy frame helps with resistance and mobility for better speed and performance. Stealth Alloy technology uses smartly designed tubes catering to specific functions with the goal of achieving the lowest weight.
Play 24 sports high-performance rear derailleurs, hydroformed tubing, and 24” tires, for ultimate precision and grip through uneven and rough trails. Young riders can conquer rigorous trails in the comfort of consistent and unstoppable braking power from durable, all-terrain compatible, MTB brakes. One-piece bolt-on upper link offers better lateral and torsional stiffness to reduce lateral stress on the shock action.
Play 24 is loaded with a dedicated 1X drivetrain compatible design for better traction and momentum. This kid bike is designed to suit young riders, with a junior handlebar, grips, and saddle. Riding stats are just a few clicks away on the Mahle-Ebikemotion display, easily accessible on the handlebar, without getting distracted from the track.
COMPONENTS / TECHNICAL SPECIFICATIONS
FRAME |
Play 24 6061 Alloy Stealth evo, hydroformed tubing, integrated internal non-removable battery, Tapered head tube, BSA bottom bracket, QR 9mm rear axle, 1x drivetrain compatible |
SIZES |
One size: 320mm |
REAR SHOCK |
- |
SHOCK SETTINGS |
- |
FORK |
RockShox Judy Silver TK 26, 100mm, TurnKey, Solo Air, tapered steerer tube, 9x135mm axle, 30mmsteel stanchions, 40mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload |
HEADSET |
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45°x45°,bottom 51.9x40x8x45°x45° |
STEM |
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
HANDLEBAR |
MDK XC 1.0, 6061 alloy, rise: 25mm, width: 580mm, 9° backsweep, 5° upsweep, 31.8mm barbore |
GRIPS |
Onoff Twin, 1lock-on, 135mm |
SEATPOST |
MDK XC 0-R, 6061 T6 Alloy, diameter 31.6mm, length 300mm |
SADDLE |
SDG Fly JR |
FRONT BRAKE |
Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
REAR BRAKE |
Sram Level, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad |
BRAKE LEVER |
Sram Level, tooled reach adjust, lever pivot bushings |
RIMS |
MDK-XP1 24 TLR, 23mm internal width, tubeless ready, 32 spokes |
SPOKES |
CN round stainless steel |
FRONT HUB |
Formula DC20LW, 9x100mm, cup & cone ball bearings, IS 6 bolts |
REAR HUB |

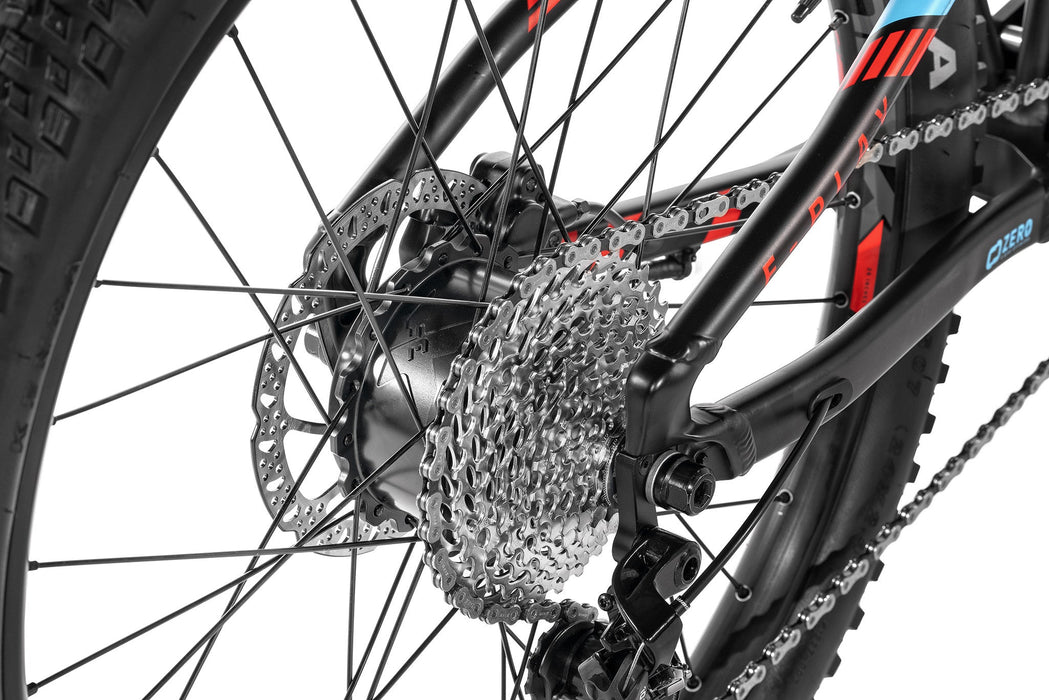

Mahle-Ebikemotion X-35 |
FRONT TIRE |
Kenda Booster 24x2.4 single compound 30TPI, wire bead |
REAR TIRE |
Kenda Booster 24x2.4 single compound 30TPI, wire bead |
CRANKSET |
Samox, Direct mount chain ring, 127mm |
RINGS |
28T, steel |
BOTTOM BRACKET |
Samox BSA, 73mm |
PEDALS |
- |
CHAIN |
Sram PC1110 11s, Powerlock |
FRONT DERAILLEUR |
- |
REAR DERAILLEUR |
Sram NX, 11s, long cage, X-actuation 1:1 |
SHIFT LEVERS |
Sram trigger NX 11s, X-actuation 1:1 |
CASSETTE |
Sram PG 1030 11-42T, 11s |
MOTOR |
Mahle-Ebikemotion X-35 |
BATTERY |
Mahle-Ebikemotion Internal 250Wh |
DISPLAY |
Mahle-Ebikemotion |
DERAILLEUR HANGER |
Mondraker M073 |
OTHERS |
- |
WEIGHT |
15.1 kg/33.28 lbs |
